CV Lighting
VSWD-790
- VSWD-791-A
- 790 Series 560mm All Amber 120 LED
- VSWD-792-A
- 790 Series 880mm All Amber 180 LED
- VSWD-793-A
- 790 Series 1200mm All Amber 240 LED
- VSWD-793-STT
- 790 Series 1200mm STT Bar 308LED R148
- VSWD-795-A
- 790 Series 1520mm All Amber 300 LED
- VSWD-795-A-STT
- 790 Series 1520mm STT Bar 368LED R148
- VSWD-796-A
- 790 Series 1840mm All Amber 360 LED
- VSWD-797-A
- 790 Series 2160mm All Amber 420 LED
- Flash Patterns 26/28 Patterns
- Approvals ECE R10 (All), ECE R65 TA2 (Amber), TB2 (Blue) Meets CAP168
- Voltage 10-30v
- IP Rating IP66
- LEDs see above
- Colours Amber
- Mounting Bracket
- Additional Features Blue/Dual
- Colour/STT available on request
- Dimensions Above x 200 x 44mm
- Box Qty 1-2
- Housing Material Aluminium
- Lens Material Polycarbonate
VSWD-802
- VSWD-802-A
10-30v amber marker, ECE R10, ECE R148
- VSWD-802-W
10-30v white marker, ECE R10, ECE R148
- VSWD-802-R
10-30v red marker, ECE R10, ECE R148
- Function Marker Light
- Approvals
- ECE R10, R148
- Voltage 12-24v
- IP Rating IP67
- Box Qty 20
- Mounting Flush Mount
- LED’s 1 LEDs
- Dimensions See above
- Housing Material ABS & Rubber
- Lens Material Polycarbonate

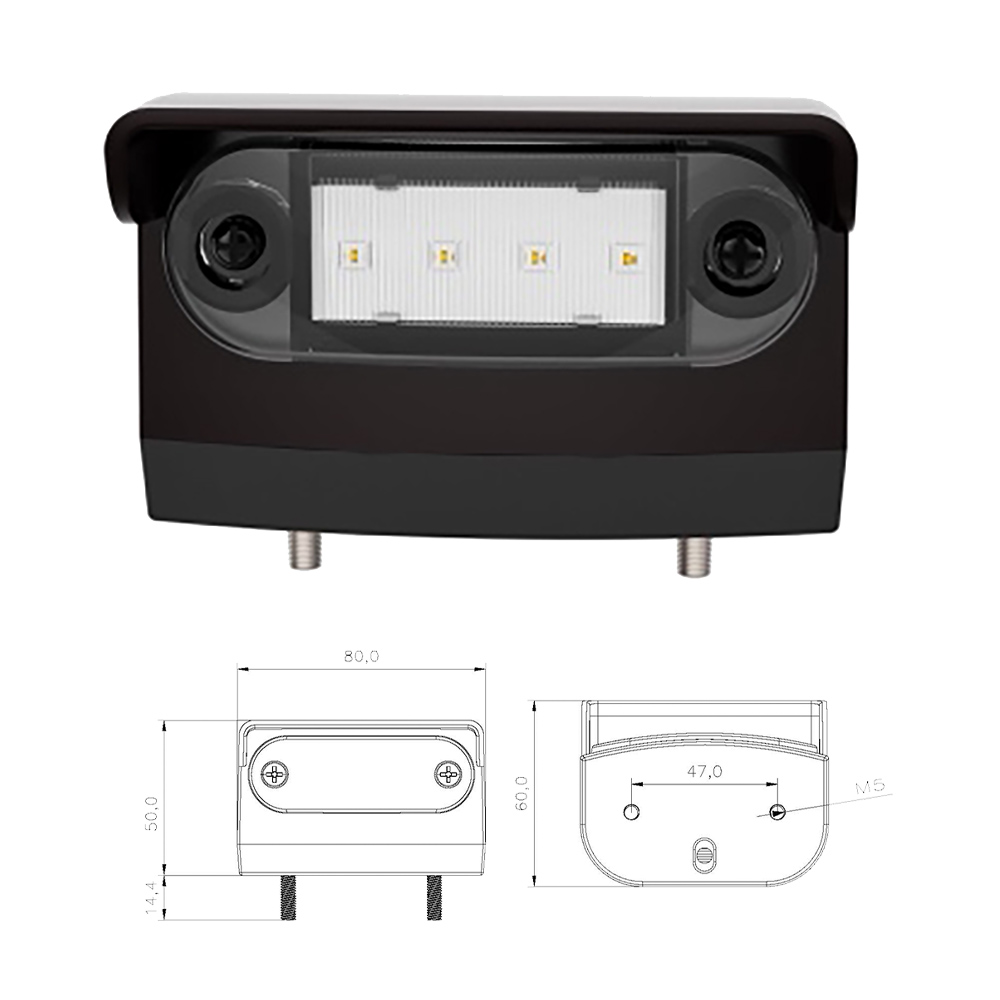

VSWD-810
- VSWD-810
- LED Number Plate lamp 10-30v ECE R10 / R4 IP65
- Function Number plate lamp
- Approvals
- ECE R10, R4
- Voltage 12-24v
- IP Rating IP65
- Box Qty 50
- Mounting Bolt Mount
- LED’s 12 x 2W LEDs
- Dimensions 100 x 49 x 33mm
- Housing Material Polycarbonate
- Lens Material Polycarbonate
VSWD-820
- VSWD-820
- Red/Amber compact S/T/I rear light
- Light Info Static light for Stop, Tail, Indicator
- Approvals ECE R10 R148 UKCA
- Voltage 10-30v
- IP Rating IP67
- LEDs 6 LEDs
- Mounting Screws or 3M Adhesive, surface mount
- Dimensions See Above
- Box Qty 50
- Housing Material Polycarbonate
- Lens Material Polycarbonate
VSWD-848
- VSWD-848-A-AMP
- Oval Amber Marker with amp 12-24V R10/R3/R91
- Function Side Marker and Reflector
- Approvals ECE R10, R3, R91
- Voltage 12-24v
- IP Rating IP65
- LEDs 3 x 1WLEDs
- Box Qty 50
- Mounting Bracket mount
- Dimensions 100 x 15 x 45mm
- Housing Material ABS
- Lens Material PMMA
VSWD-849
- VSWD-849-Colour
- A = Amber
- R = Red
- W = White
- Function Side Marker Lights with Reflex Reflector
- Approvals ECE R10 R148
- Voltage 12-24v
- IP Rating IP67
- LEDs 6 LEDs
- Box Qty 50
- Mounting Bracket
- Dimensions 115 x 70 x 41mm
- Housing Material Zinc
- Lens Material Polycarbonate

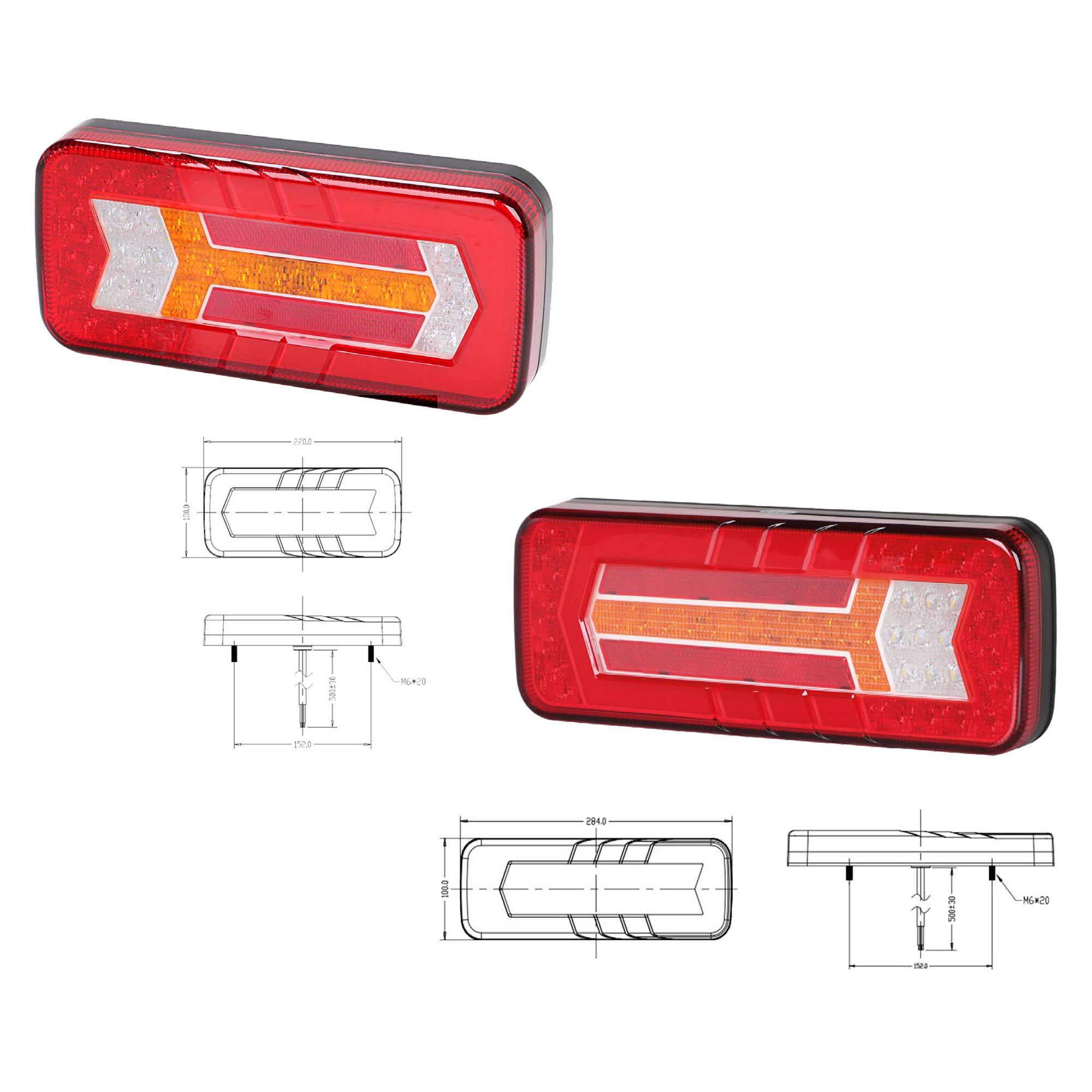

VSWD-853
- VSWD-853
- 5 Function Tail Light with progressive indicator
- Function Stop, Tail, Turn, Reverse, Fog
- Approvals ECE R10 R3, R6, R7, R23, R38
- Voltage 12-24v IP Rating IP67
- Mounting Surface
- Additional Features Progressive Indicator
- Dimensions 284 x 100 x 35mm
- Box Qty 30
- Housing Material Polycarbonate
- Lens Material Polycarbonate
VSWD-CWL1
- VSWD-CWL1
10-30v LED Cycle Warning Light, ECE R10, IP68
- Wires 3 Wires inc Turn Signal Trigger
- Approvals ECE R10
- Voltage 10-30v
- IP Rating IP68
- Mounting Surface mount, bolts
- Additional Features Photosensor for reduced output at night
- Dimensions 160 x 160mm
- Box Qty
- Housing Material Polycarbonate
- Lens Material Silicon
VSWD-SL2800
- VSWD-SL2800
- Scene Light 4 LED 28W
- VSWD-SL2800W-A
- Scene Light with Amber Side Marker
- VSWD-SL2800W-R
- Scene Light with red side marker
- VSWD-SL2800-W
- Scene Light with white side marker
- VSWD-SL2800-R65
- Scene Light with amber R65 warning light
- Lumens 2800 LM
- Approvals ECE R10 R148 R65 UKCA
- Voltage 10-30v
- IP Rating IP69k
- LEDs 4 LEDs + side marker/warning light
- Beam Pattern Flood
- Mounting Screw fix surface mount
- Additional Features
- Dimensions See above
- Box Qty 20
- Housing Material Aluminium
- Lens Material Polycarbonate

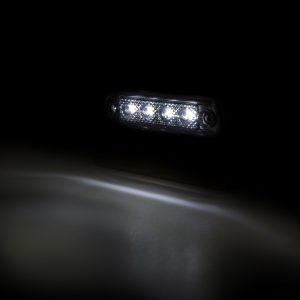

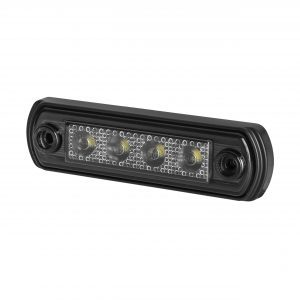

LD 675
LD675 GRAPHITE
The LD 675/GRAPHITE marker light combines elegant design with high functionality. With its dark shade, the light follows modern trends in vehicle design while providing adequate visibility on the road.
- Front position light. The lamp emits white light to enhance road safety by making your vehicle better visible in various conditions.
- The light can be mounted either on a straight rubber support or on a tube, providing more flexibility to suit the user’s needs.
- Number of LEDs. Fitted with 4 high-efficiency LEDs, the lamp provides efficient lighting with minimal energy consumption.
- Universal supply voltage. Operating at 12/24 V, it is perfect for a variety of vehicle types.
- Low power rating. With a power output of 0.4 W (at 12 V) and 0.7 W (at 24 V), the light is energy-efficient, a property that translates into longer life and less strain on the battery.
- High IP 68 rating. The light is fully hermetic and resistant to mechanical damage.
- Wide operating temperature range from -30°C to +50°C. Suitable for all weather conditions, the product will be a reliable choice all year round.
- Light group HOR 65G
- LED quantity 4
- Light category marker
- Supply voltage 12/24V
- Light colour white
- Power rating 0.4/0.7 W
- Operating temp range from -30°C to +50°C
- Cable 2×0.75mm², cable length 0.25m
- Side universal
- Front position light yes
- LED light yes
- Ingress protection rating IP68

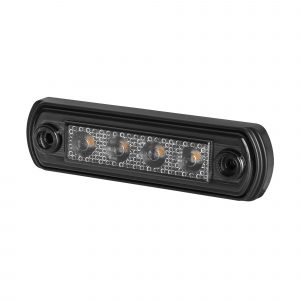

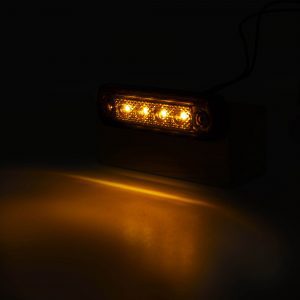

LD 676
LD676 GRAPHITE
The LD 676/GRAPHITE marker light combines elegant design with high functionality. With its dark shade, the light follows modern trends in vehicle design while providing adequate visibility on the road.
- Side marker light. The lamp emits orange light to enhance road safety by making your vehicle better visible in various conditions.
- The light can be mounted either on a straight rubber support or on a tube, providing more flexibility to suit the user’s needs.
- Number of LEDs. Fitted with 4 high-efficiency LEDs, the lamp provides efficient lighting with minimal energy consumption.
- Universal supply voltage. Operating at 12/24 V, it is perfect for a variety of vehicle types.
- Low power rating. With a power output of 0.6 W (at 12 V) and 1.2 W (at 24 V), the light is energy-efficient, a property that translates into longer life and less strain on the battery.
- High IP 68 rating. The light is fully hermetic and resistant to mechanical damage.
- Wide operating temperature range from -30°C to +50°C. Suitable for all weather conditions, the product will be a reliable choice all year round.
- Light group HOR 65G
- LED quantity 4
- Light category marker
- Supply voltage 12/24V
- Light colour amber
- Power rating 0.6/1.2W
- Operating temp range from -30°C to +50°C
- Cable 2×0.75mm², cable length 0.25m
- Side marker light yes
- Side universal
- LED light yes
- Ingress protection rating IP68²

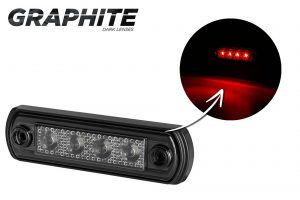

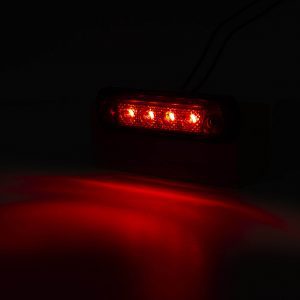

LD 677
LD677 GRAPHITE
The LD 677/GRAPHITE marker light combines elegant design with high functionality. With its dark shade, the light follows modern trends in vehicle design while providing adequate visibility on the road.
- Rear position light. The lamp emits red light to enhance road safety by making your vehicle better visible in various conditions.
- The light can be mounted either on a straight rubber support or on a tube, providing more flexibility to suit the user’s needs.
- Number of LEDs. Fitted with 4 high-efficiency LEDs, the lamp provides efficient lighting with minimal energy consumption.
- Universal supply voltage. Operating at 12/24 V, it is perfect for a variety of vehicle types.
- Low power rating. With a power output of 0.6 W (at 12 V) and 1.2 W (at 24 V), the light is energy-efficient, a property that translates into longer life and less strain on the battery.
- High IP 68 rating. The light is fully hermetic and resistant to mechanical damage.
- Wide operating temperature range from -30°C to +50°C. Suitable for all weather conditions, the product will be a reliable choice all year round.
- Light group HOR 65G
- LED quantity 4
- Light category marker
- Rear position light yes
- Supply voltage 12/24V
- Power rating 0.6/1.2W
- Operating temp range from -30°C to +50°C
- Cable 2×0.75mm², cable length 0.25m
- Light colour red
- Side universal
- LED light yes
- Ingress protection rating IP68

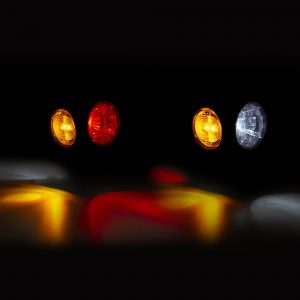

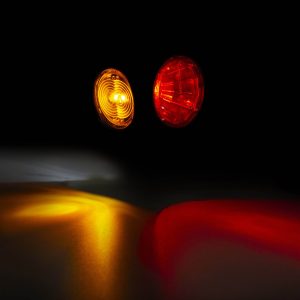

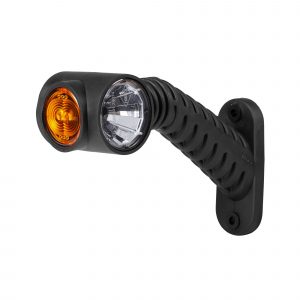

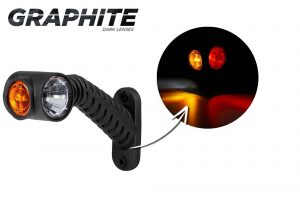

LD 2174
LD2174 GRAPHITE
LD 2174/GRAPHITE is a triple stalk marker light on a diagonal, long arm, designed to be mounted on the right side of a vehicle. Designed for use from small trailers to trucks and semi-trailers.
The light from the GRAPHITE collection features a sleek, dark shade, combining modern design with functionality for excellent visibility.
- Front position light (white light);
- Stalk marker light (orange light);
- Rear position light (red light);
- Operating at a universal voltage of 12/24 V, the light is characterised by low energy consumption. The light with a reflecting device has been manufactured only with branded LEDs, which ensure a unique quality of illumination and add a visual appeal to the contour of a vehicle in motion. The high IP 68 rating and the operating temperature range of – 30oC to + 50oC make it a top quality product.
- Light group HOR 77AG
- LED quantity 4
- Light category marker
- Supply voltage 12/24V
- Front clearance light yes
- Light colour white/amber/red
- Power rating 0.5/1.3W
- Rear clearance light yes
- Operating temp range from -30°C to +50°C
- Cable 2×0.75mm², cable length 0.5m
- Side marker light yes
- Side right
- Arm yes
- Ingress protection rating IP68
- LED light yes

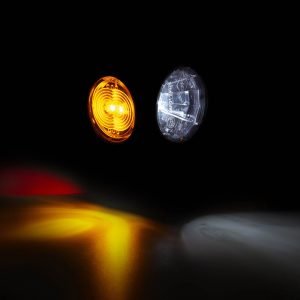

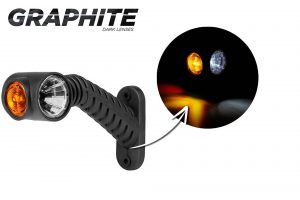

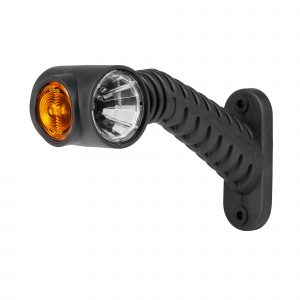

LD 2175
LD2175 GRAPHITE
LD 2175/GRAPHITE is a triple stalk marker light on a diagonal, long arm, designed to be mounted on the left side of a vehicle. Designed for use from small trailers to trucks and semi-trailers.
The light from the GRAPHITE collection features a sleek, dark shade, combining modern design with functionality for excellent visibility.
- Front position light (white light);
- Stalk marker light (orange light);
- Rear position light (red light);
- Operating at a universal voltage of 12/24 V, the light is characterised by low energy consumption. The light with a reflecting device has been manufactured only with branded LEDs, which ensure a unique quality of illumination and add a visual appeal to the contour of a vehicle in motion. The high IP 68 rating and the operating temperature range of – 30°C to + 50°C make it a top quality product.
- Light group HOR 77AG
- LED quantity 4
- Light category marker
- Supply voltage 12/24V
- Front clearance light yes
- Light colour white/amber/red
- Operating temp range from -30°C to +50°C
- Cable 2×0.75mm², cable length 0.5m
- Side marker light yes
- Side left
- Arm yes
- Ingress protection rating IP68
- LED light yes
- Power rating 0.5/1.3W
- Rear clearance light yes

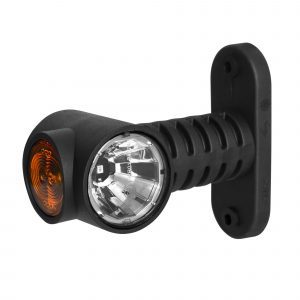

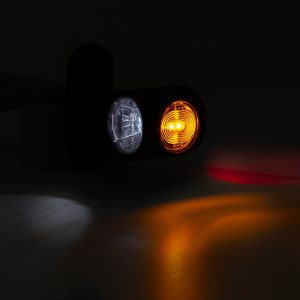

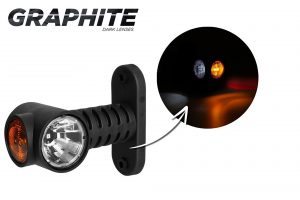

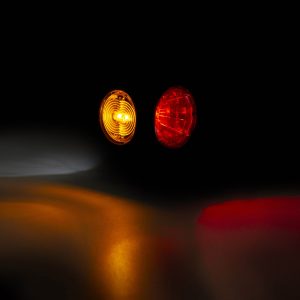

LD 2191
LD2191 GRAPHITE
LD 2191/GRAPHITE is a triple stalk marker light on a straight, long arm. The product is universal in terms of mounting options. It can be fitted on either the left or the right side of your vehicle. Designed for use from small trailers to trucks and semi-trailers.
The light from the GRAPHITE collection features a sleek, dark shade, combining modern design with functionality for excellent visibility.
- Front position light (white light);
- Stalk marker light (orange light);
- Rear position light (red light);
- Operating at a universal voltage of 12/24 V, the light is characterised by low energy consumption. The light with a reflecting device has been manufactured only with branded LEDs, which ensure a unique quality of illumination and add a visual appeal to the contour of a vehicle in motion. The high IP 68 rating and the operating temperature range of – 30°C to + 50°C make it a top quality product.
- Light group HOR 77AG
- LED quantity 4
- Light category marker
- Supply voltage 12/24V
- Front clearance light yes
- Light colour white/amber/red
- Operating temp range from -30°C to +50°C
- Cable 2×0.75mm², cable length 0.5m
- Side marker light yes
- Side universal
- Arm yes
- Ingress protection rating IP68
- LED light yes
- Power rating 0.5/1.3W
- Rear clearance light yes

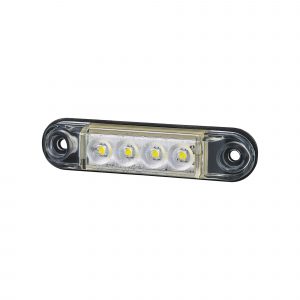

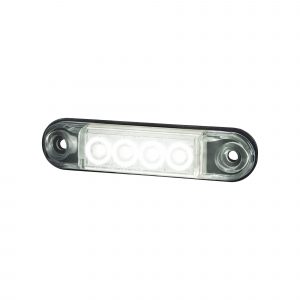

LD 2327
- Light group HOR 88
- LED quantity 4
- Light category marker
- Supply voltage 12/24V
- Light colour white
- Power rating 0.3/0.7W
- Operating temp range from -30°C to +50°C
- Side universal
- Front position light yes
- LED light yes
- Ingress protection rating IP68

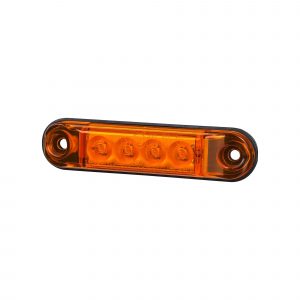

LD 2328
- Light group HOR 88
- LED quantity 4
- Light category marker
- Supply voltage 12/24V
- Light colour amber
- Power rating 0.3/0.8W
- Operating temp range from -30°C to +50°C
- Side universal
- Side marker light yes
- LED light yes
- Ingress protection rating IP68

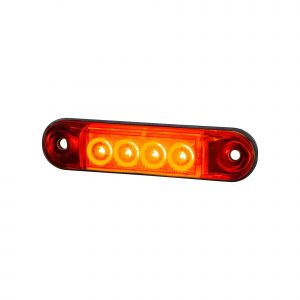

LD 2329
- Light group HOR 88
- LED quantity 4
- Light category marker
- Supply voltage 12/24V
- Light colour amber
- Power rating 0.3/0.8W
- Operating temp range from -30°C to +50°C
- Side universal
- Rear position light yes
- LED light yes
- Ingress protection rating IP68

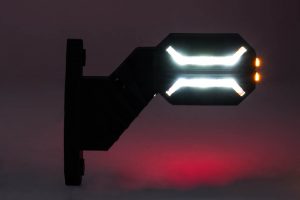

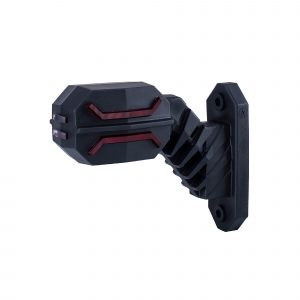

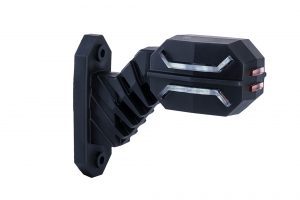

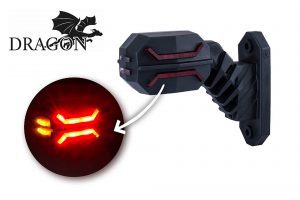

LD 3063
LD3063
LD 3063 is a three-function marker lamp on a short diagonal arm, designed to be mounted on the left side of the vehicle. The lamp operates on a universal voltage of 12/24 V and is characterized by low power consumption. Only branded diodes are used for production, which definitely distinguish the quality of lighting and attractively emphasize the outline of a moving vehicle. LD 3063 with an interesting design is intended for use in trucks and agricultural machines, trailers and semi-trailers.
- Rear position light (red light colour) – 6 diodes
- Front position light (white light colour) – 6 diodes
- Side marker light (orange light colour) – 4 diodes
- Product is fully hermetic (ingress protection rating IP 68), and the operating temperature range is from -30°C to +50°C.
- Light group HOR 134
- LED quantity 16
- Light category marker
- Supply voltage 12/24V
- Front position light yes
- Rear position light yes
- Operating temp range from -30°C to +50°C
- Cable 2×0.75mm², cable length 0.6m
- Side marker light yes
- Side left
- Arm yes
- Ingress protection rating IP68
- LED light yes
- Power rating 1.9W

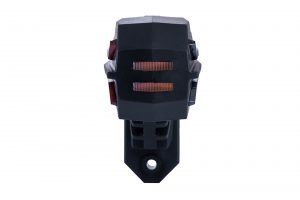

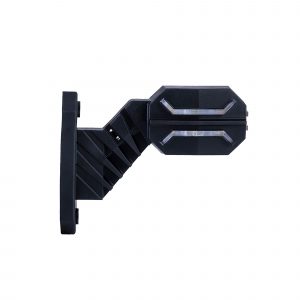

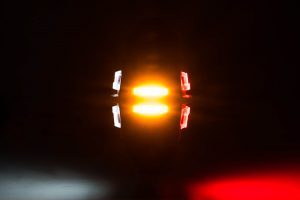

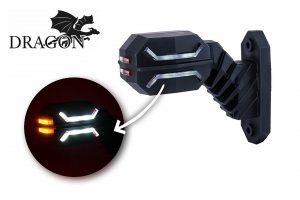

LD 3064
LD3064
LD 3064 is a three-function marker lamp on a short diagonal arm, designed to be mounted on the right side of the vehicle. The lamp operates on a universal voltage of 12/24 V and is characterized by low power consumption. Only branded diodes are used for production, which definitely distinguish the quality of lighting and attractively emphasize the outline of a moving vehicle. LD 3064 with an interesting design is intended for use in trucks and agricultural machines, trailers and semi-trailers.
- Rear position light (red light colour) – 6 diodes
- Front position light (white light colour) – 6 diodes
- Side marker light (orange light colour) – 4 diodes
- Product is fully hermetic (ingress protection rating IP 68), and the operating temperature range is from -30°C to +50°C.
- Light group HOR 134
- LED quantity 16
- Light category marker
- Supply voltage 12/24V
- Front position light yes
- Rear position light yes
- Operating temp range from -30°C to +50°C
- Cable 2×0.75mm², cable length 0.6m
- Side marker light yes
- Side right
- Arm yes
- Ingress protection rating IP68
- LED light yes
- Power rating 1.9W

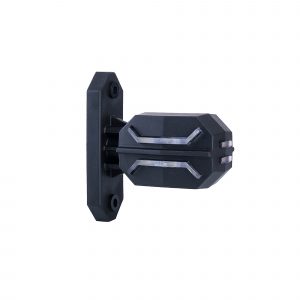

LD 3065
LD3065

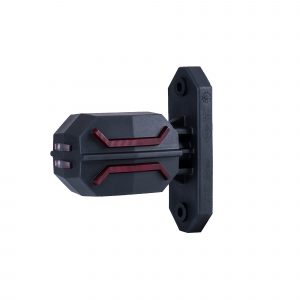

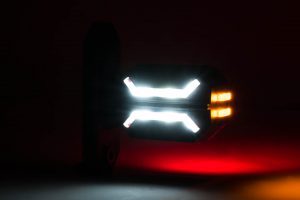

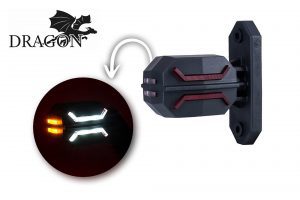

LD 3065 is a three-function marker lamp on a short diagonal arm. The lamp is universal in assembly, it can be installed both on the left and right side of the vehicle. The lamp operates on a universal voltage of 12/24 V and is characterized by low power consumption. Only branded diodes are used for production, which definitely distinguish the quality of lighting and attractively emphasize the outline of a moving vehicle. LD 3065 with an interesting design is intended for use in trucks and agricultural machines, trailers and semi-trailers.
- Rear position light (red light colour) – 6 diodes
- Front position light (white light colour) – 6 diodes
- Side marker light (orange light colour) – 4 diodes
- Product is fully hermetic (ingress protection rating IP 68), and the operating temperature range is from -30°C to +50°C.
- Light group HOR 134
- LED quantity 16
- Light category marker
- Supply voltage 12/24V
- Front position light yes
- Rear position light yes
- Operating temp range from -30°C to +50°C
- Cable 2×0.75mm², cable length 0.6m
- Side marker light yes
- Side universal
- Arm yes
- Ingress protection rating IP68
- LED light yes
- Power rating 1.9W

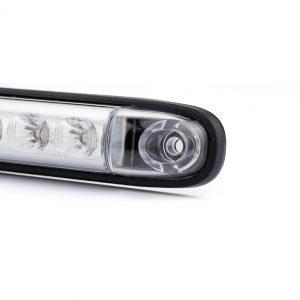

LKD 2249/ST
LKD 2249/ST

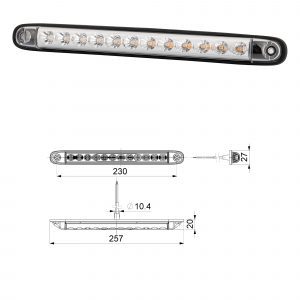

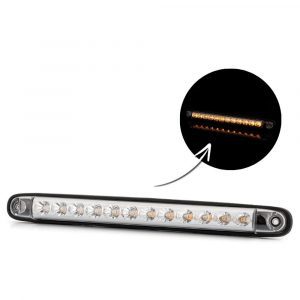

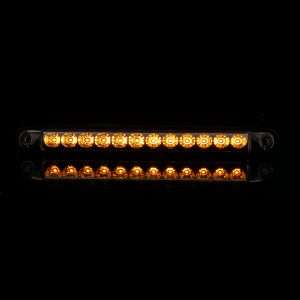

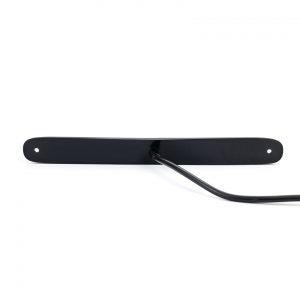

LKD 2249/ST Rear static direction indicator.
Reliability, safety, and versatility in one solution.
The LKD 2249/ST model is a high-quality static LED rear indicator, designed with maximum functionality and durability in mind. Equipped with 12 efficient LEDs, the lamp delivers a clear light signal that enhances vehicle visibility and road safety – both day and night, in all weather conditions.
Its IP 68-rated housing ensures complete resistance to dust and water, making it ideal for use in harsh environments, including road transport, agriculture, and industry. The lamp operates reliably across a wide temperature range and features a universal design that allows for horizontal or vertical mounting on either side of the vehicle.
Thanks to its low rated power consumption (2,1/2,5 W), the lamp is highly energy-efficient, helping extend the lifespan of electrical systems. The 12/24 V power supply makes it compatible with most vehicles available on the market.
Perfect for trucks, construction and agricultural machinery, and all utility vehicles requiring durable directional lighting.
Choose quality and safety – equip your vehicle with the LKD 2249/ST!
- Light group HOR 86E
- LED quantity 12
- Light category direction indicator
- Light colour amber
- Supply voltage 12/24V
- Rear direction indicator yes
- Operating temp range from -30°C to +50°C
- Cable 2×0.75mm², cable length 1m
- Side universal
- Ingress protection rating IP68
- LED light yes
- Power rating 2.1/2.5W

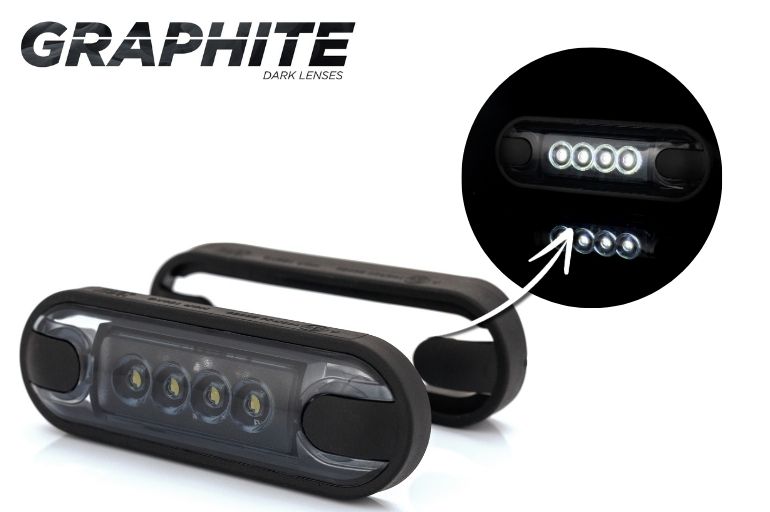

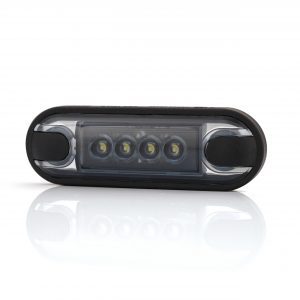

LD 3210

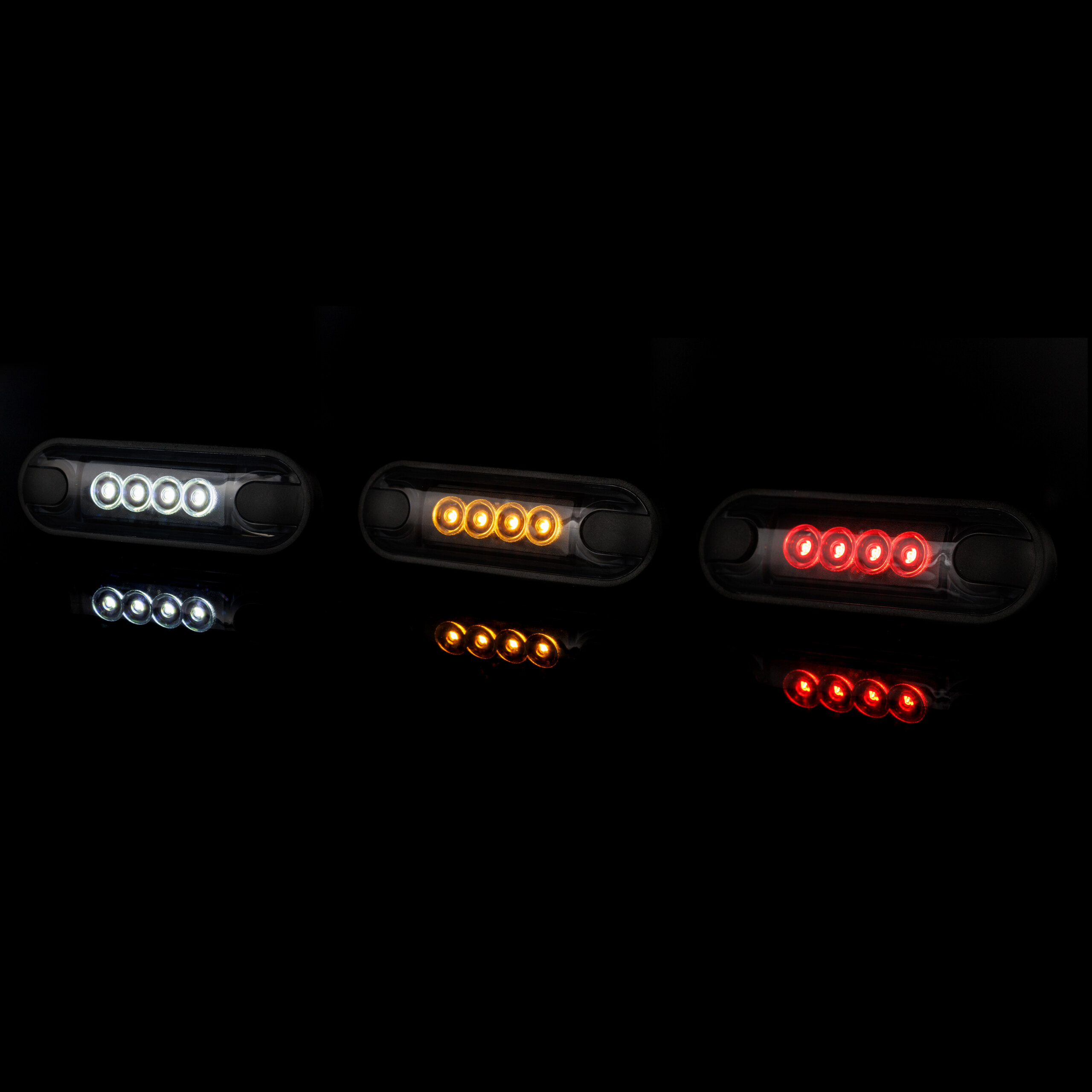

The modern, compact front marker light LD 3210/ GRAPHITE SLIM – perfect solution for commercial, delivery and specialized vehicles. With its slim design and universal mounting method, this lamp is suitable for various configurations.
- The lamp from the GRAPHITE collection features an elegant, dark shade, combining modern look with functionality.
- LED technology – 4 efficient diodes emit bright, white position light.
- Universal voltage of 12/24 V ensures compatibility with most vehicles.
- Minimal energy consumption – only 0,5/1 W of power.
- High IP 68 rating – resistant to water, dust and harsh weather conditions.
- European approval and EMC certificate – full compliance with safety standards.
- Easy installation. Two unique rubber pads allow for perfect mounting of the lamp on both flat surfaces and vehicle bars, while effectively masking the mounting screws.
- Thanks to its durable construction and reliable LED technology, the LD 3210/GRAPHITE lamp provides excellent visibility and long lifespan, meeting the requirements of even the most demanding users.
- Light group HOR 158G
- LED quantity 4
- Light category marker
- Light colour white
- Supply voltage 12/24V
- Front position light yes
- Operating temp range from -30°C to +50°C
- Cable 2x1x0.75mm², cable length 0.5m
- Side universal
- Ingress protection rating IP68
- LED light yes
- Power rating 0.5/1W

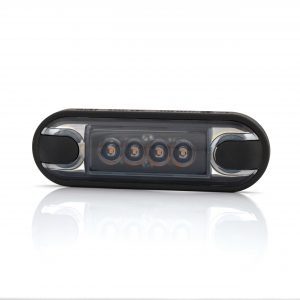

LD 3211

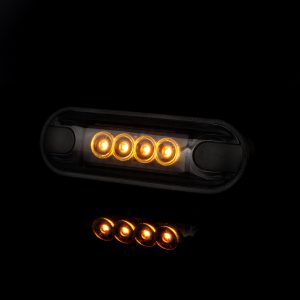

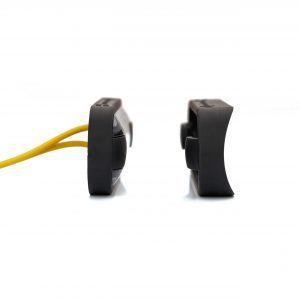

The modern, compact side marker lamp LD 3211/GRAPHITE SLIM – perfect solution for commercial, delivery and specialized vehicles. With its slim design and universal mounting method, this lamp is suitable for various configurations.
- The lamp from the GRAPHITE collection features an elegant, dark shade, combining modern look with functionality.
- LED technology – 4 efficient diodes emit bright, orange marker light.
- Universal voltage of 12/24 V ensures compatibility with most vehicles.
- Minimal energy consumption – only 0,5/1 W of power.
- High IP 68 rating – resistant to water, dust and harsh weather conditions.
- European approval and EMC certificate – full compliance with safety standards.

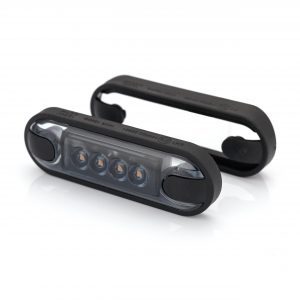

- Easy installation. Two unique rubber pads allow for perfect mounting of the lamp on both flat surfaces and vehicle bars, while effectively masking the mounting screws.
- Thanks to its durable construction and reliable LED technology, the LD 3211/GRAPHITE lamp provides excellent visibility and long lifespan, meeting the requirements of even the most demanding users.
- Light group HOR 158G
- LED quantity 4
- Light category marker
- Light colour amber
- Supply voltage 12/24V
- Side position light yes
- Operating temp range from -30°C to +50°C
- Cable 2x1x0.75mm², cable length 0.5m
- Side universal
- Ingress protection rating IP68
- LED light yes
- Power rating 0.5/1W

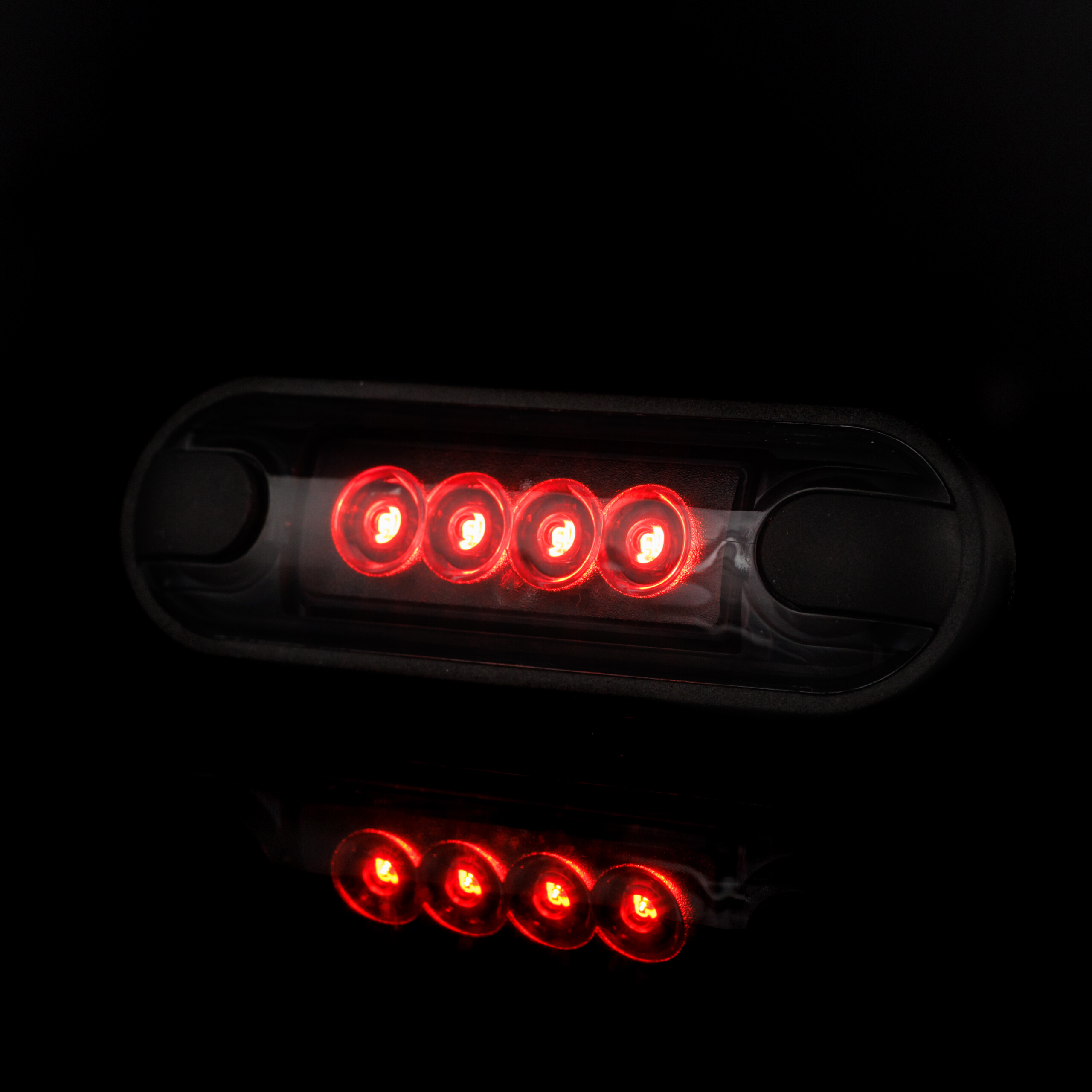

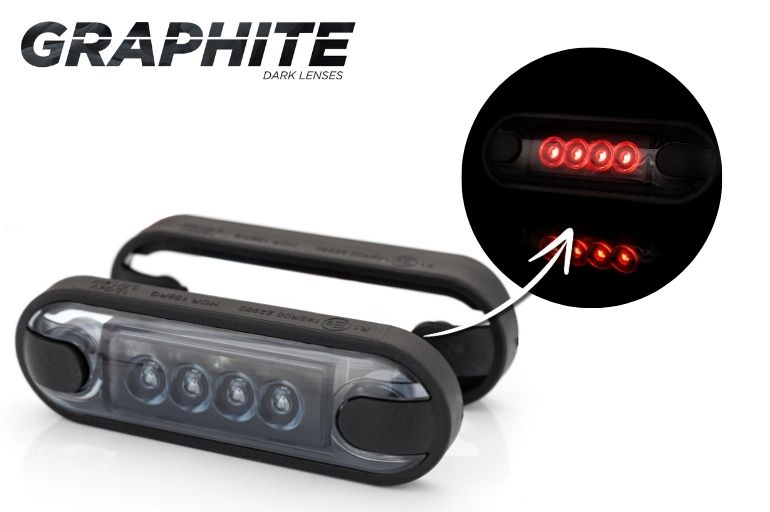

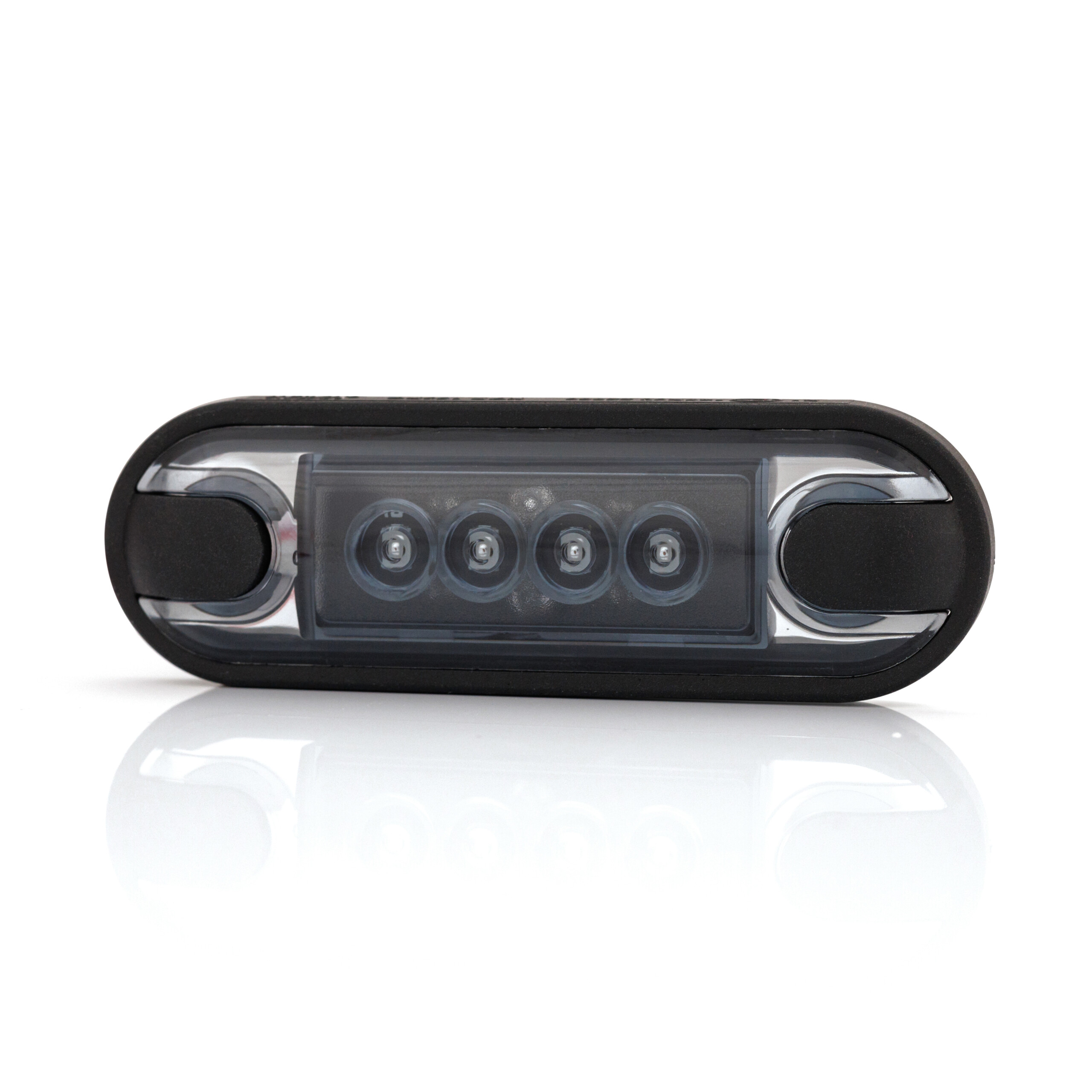

LD 3212
The modern, compact side marker lamp LD 3212/GRAPHITE SLIM – perfect solution for commercial, delivery and specialized vehicles. With its slim design and universal mounting method, this lamp is suitable for various configurations.
- The lamp from the GRAPHITE collection features an elegant, dark shade, combining modern look with functionality.
- LED technology – 4 efficient diodes emit bright, red position light.
- Universal voltage of 12/24 V ensures compatibility with most vehicles.
- Minimal energy consumption – only 0,7/1,4 W of power.
- High IP 68 rating – resistant to water, dust and harsh weather conditions.
- European approval and EMC certificate – full compliance with safety standards.
- Easy installation. Two unique rubber pads allow for perfect mounting of the lamp on both flat surfaces and vehicle bars, while effectively masking the mounting screws.
- Thanks to its durable construction and reliable LED technology, the LD 3212/GRAPHITE lamp provides excellent visibility and long lifespan, meeting the requirements of even the most demanding users.
- Light group HOR 158G
- LED quantity 4
- Light category marker
- Supply voltage 12/24V
- Rear position light yes
- Operating temp range from -30°C to +50°C
- Cable 2x1x0.75mm², cable length 0.5m
- Side universal
- Ingress protection rating IP68
- LED light yes
- Power rating 0.7/1.4W
LZKD 3140

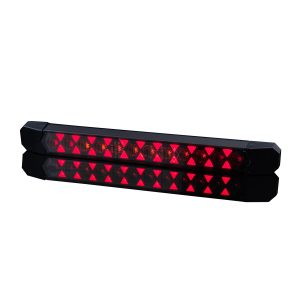

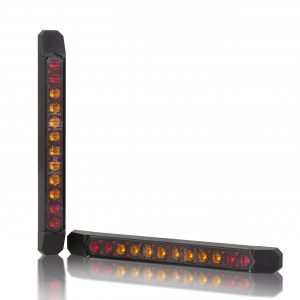

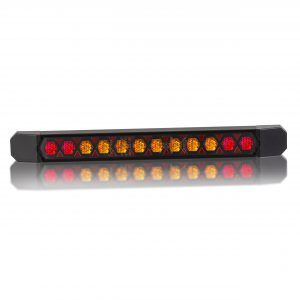

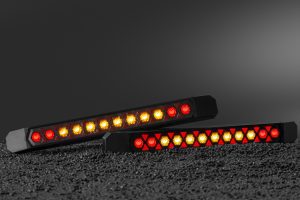

Compact rear multifunction lamp LIZARD LZD 3140, which combines innovative LED technology with modern design. Thanks to the use of 34 diodes, the lamp provides excellent visibility in all conditions, which makes it an ideal solution for various types of vehicles.
- The LZD 3140 multifunction lamp provides three light functions: position, braking and static direction indicator.
- Universal mounting side. The lamp can be mounted both vertically and horizontally, which allows for easy adjustment to various vehicle designs.
- Supply voltage. The lamp operates in the voltage range of 12/24 V.
- Wide operating temperature range from -30°C to +50°C. The lamp is resistant to various weather conditions, which ensures its reliability in extreme temperatures.
- High resistance. The lamp is fully hermetic (compliance with the degree of protection against moisture IP 68), resistant to high and low temperatures and mechanical damage.
- The operation of the lamp is also guaranteed in a way that does not emit electromagnetic interference and is electromagnetic interference-resistant, which is confirmed by the EMC certificate.
- Wide range of applications. Perfect for specialized vehicles, semi-trailers, trailers, light electric vehicles, construction machinery and other commercial vehicles.
- Light group HOR 145A
- LED quantity 34
- Light category multifunction rear
- Brake light yes
- Rear position light yes
- Supply voltage 12/24V
- Rear direction indicator yes
- Operating temp range from -30°C to +50°C
- Cable 4×0.5mm², cable length 1m
- Side universal
- Ingress protection rating IP68
- LED light yes

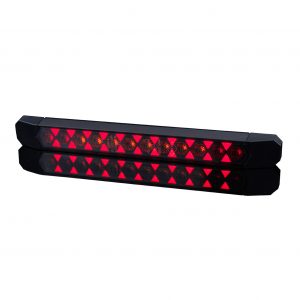

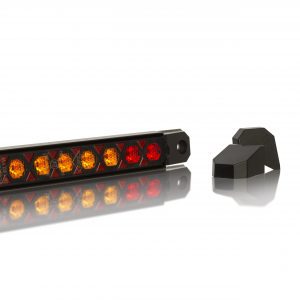

LZKD 3141

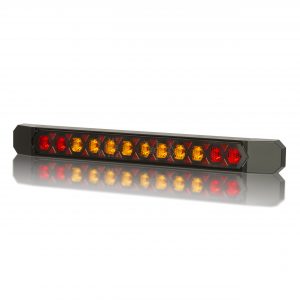

Rear multifunction light with dynamic direction indicator LIZARD
Compact rear multifunction lamp LIZARD LZD 3141, which combines innovative LED technology with modern design. Thanks to the use of 34 diodes, the lamp provides excellent visibility in all conditions, which makes it an ideal solution for various types of vehicles.
- The LZD 3141 multifunction lamp provides three light functions: position, braking and dynamic direction indicator.
- The lamp is universal in installation, it can be mounted on both the left and right side of the vehicle.
- Supply voltage. The lamp operates in the voltage range of 12/24 V.
- Wide operating temperature range from -30°C to +50°C. The lamp is resistant to various weather conditions, which ensures its reliability in extreme temperatures.
- High resistance. The lamp is fully hermetic (compliance with the degree of protection against moisture IP 68), resistant to high and low temperatures and mechanical damage.
- The operation of the lamp is also guaranteed in a way that does not emit electromagnetic interference and is electromagnetic interference-resistant, which is confirmed by the EMC certificate.
- Wide range of applications. Perfect for specialized vehicles, semi-trailers, trailers, light electric vehicles, construction machinery and other commercial vehicles.
- Light group HOR 145AD
- LED quantity 34
- Light category multifunction rear
- Brake light yes
- Rear position light yes
- Supply voltage 12/24V
- Dynamic direction indicator yes
- Operating temp range from -30°C to +50°C
- Cable 4×0.5mm², cable length 1m
- Side universal
- Ingress protection rating IP68
- LED light yes
